AI recording pen

1. Product Overview

AI voice recorder is a portable conversational intelligent terminal for business meetings, customer visits, interview research, classroom learning and inspiration recording. Through convenient recording, intelligent transcription, semantic analysis and summary, it automatically precipitates communication points, meeting decisions and business process data, and supports content retrieval, re-analysis and task follow-up, helping users to realize a complete closed loop from voice recording to information sorting and action execution.

2. core selling points

3. hardware parameters

Basic parameters:

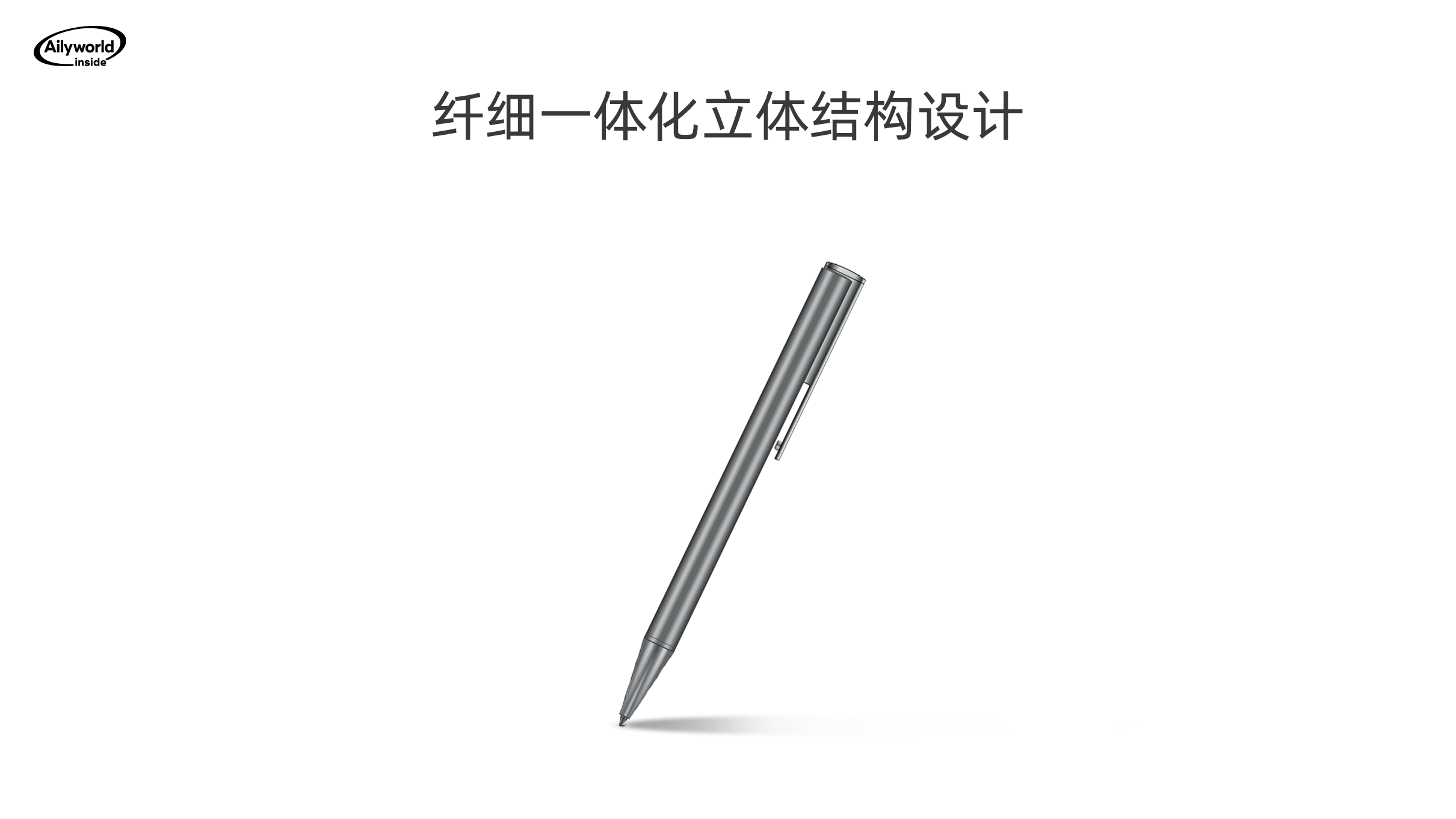

• Products for the pen form

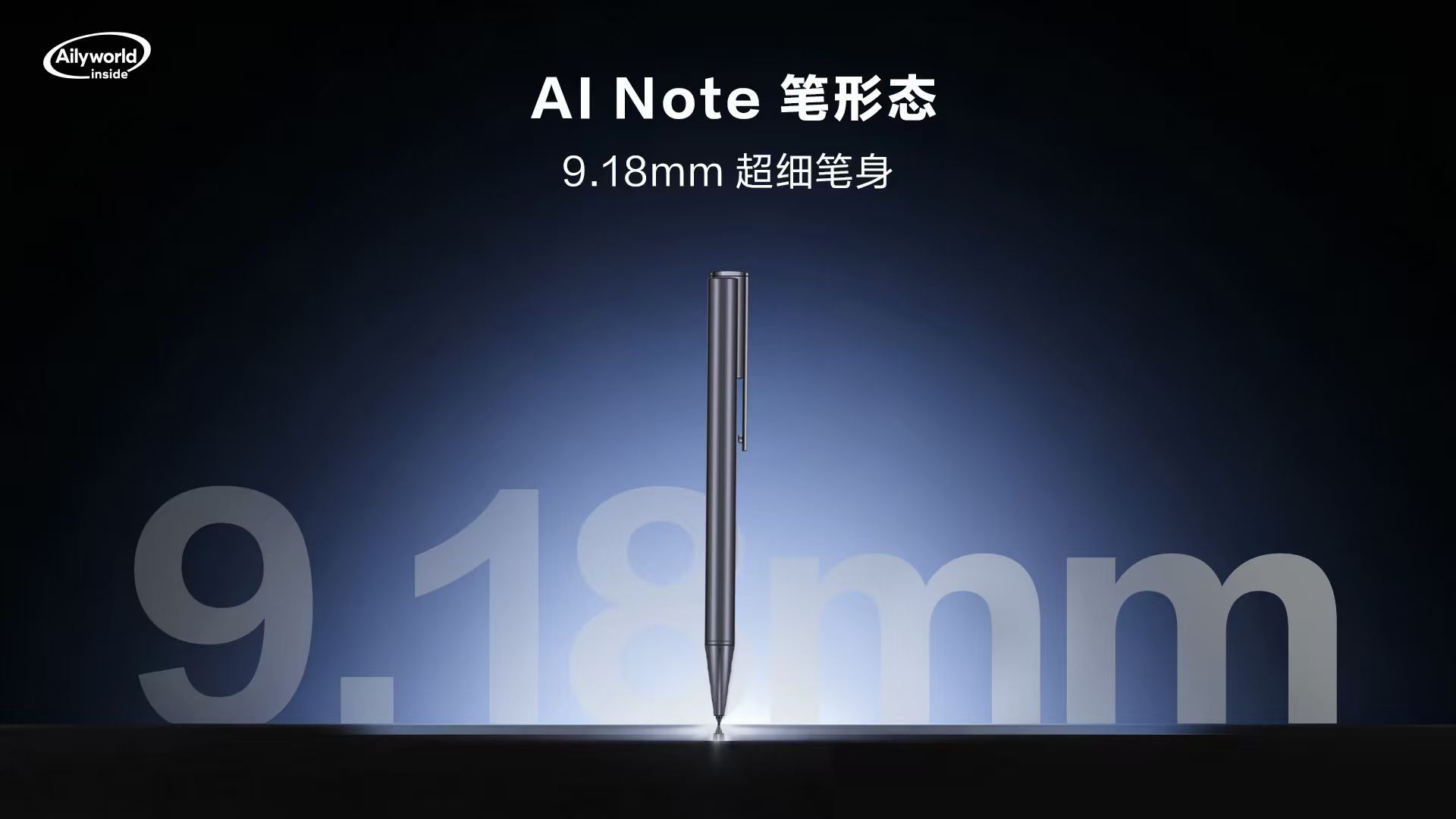

• Overall dimensions146*13*9.18mm

• Using PocketPackageThe way to wear it.

• Weight of the whole machine 17g

• Color is black, support customization

• Configure 1 RGB indicator

• Configure 1 touch button

• Equipped with 1 flat motor.


Audio Configuration:

• Contains 3 air guide wheat

• Recording sampling format is 16kHz/16-bit

• Recording coding using OPUS

• The recommended distance for pickup is 3 meters, and the effective pickup distance can reach 10 meters.

Storage:

• Using SD NAND

• Storage capacity range 512MB ~ 64GB.

Communication:

• Bluetooth version supports Bluetooth 5.3 and above.

Transmission rate:

• iOS environment transfer rate of about 50 K/S

• Android environment transmission rate of about 100 K/S

WiFi：

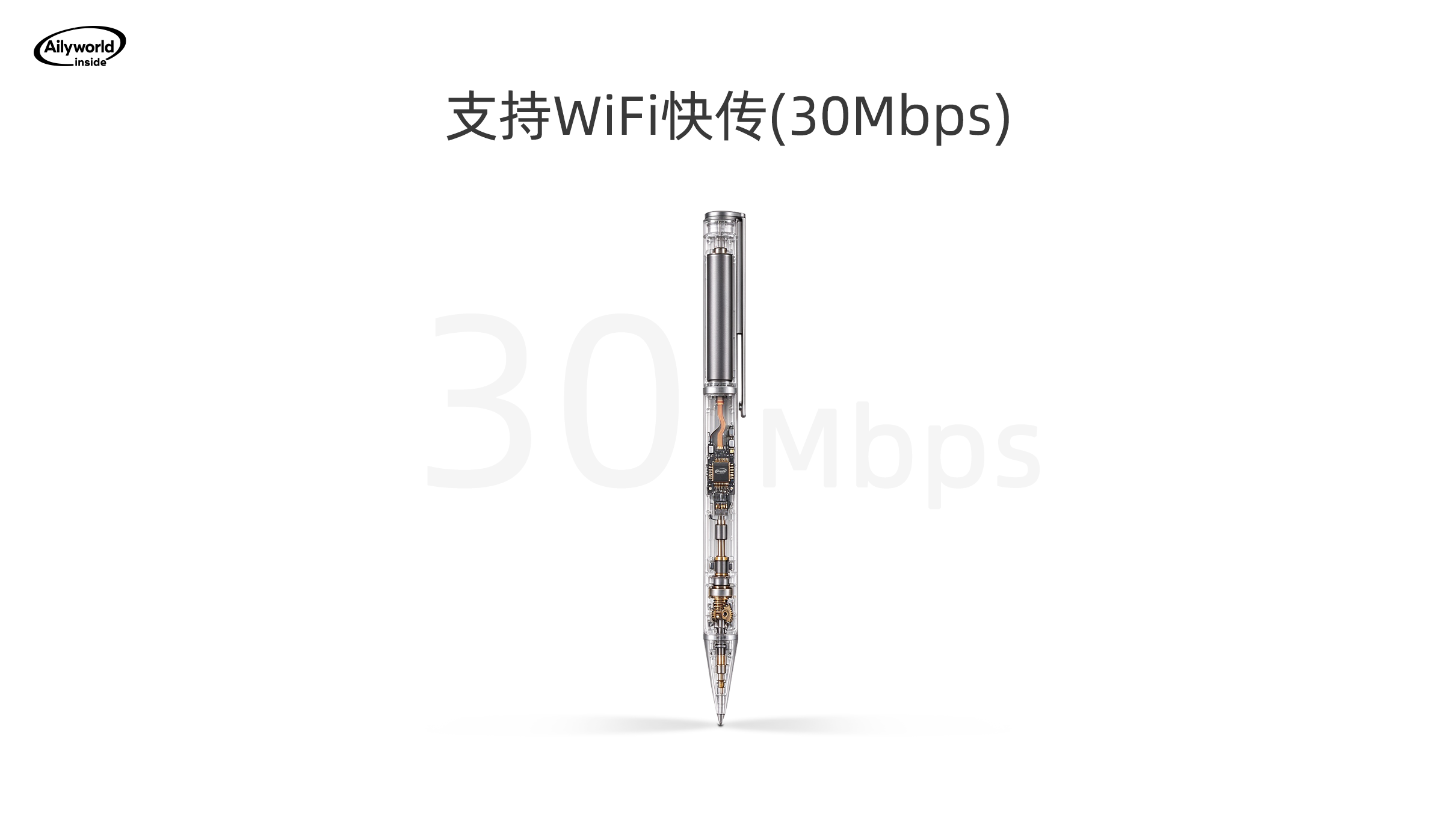

• AdoptWiFi6 Dual Band 2.4G/5.8G

• Transmission rate up to 30Mbps

Charging:

• The battery capacity is 90mAh

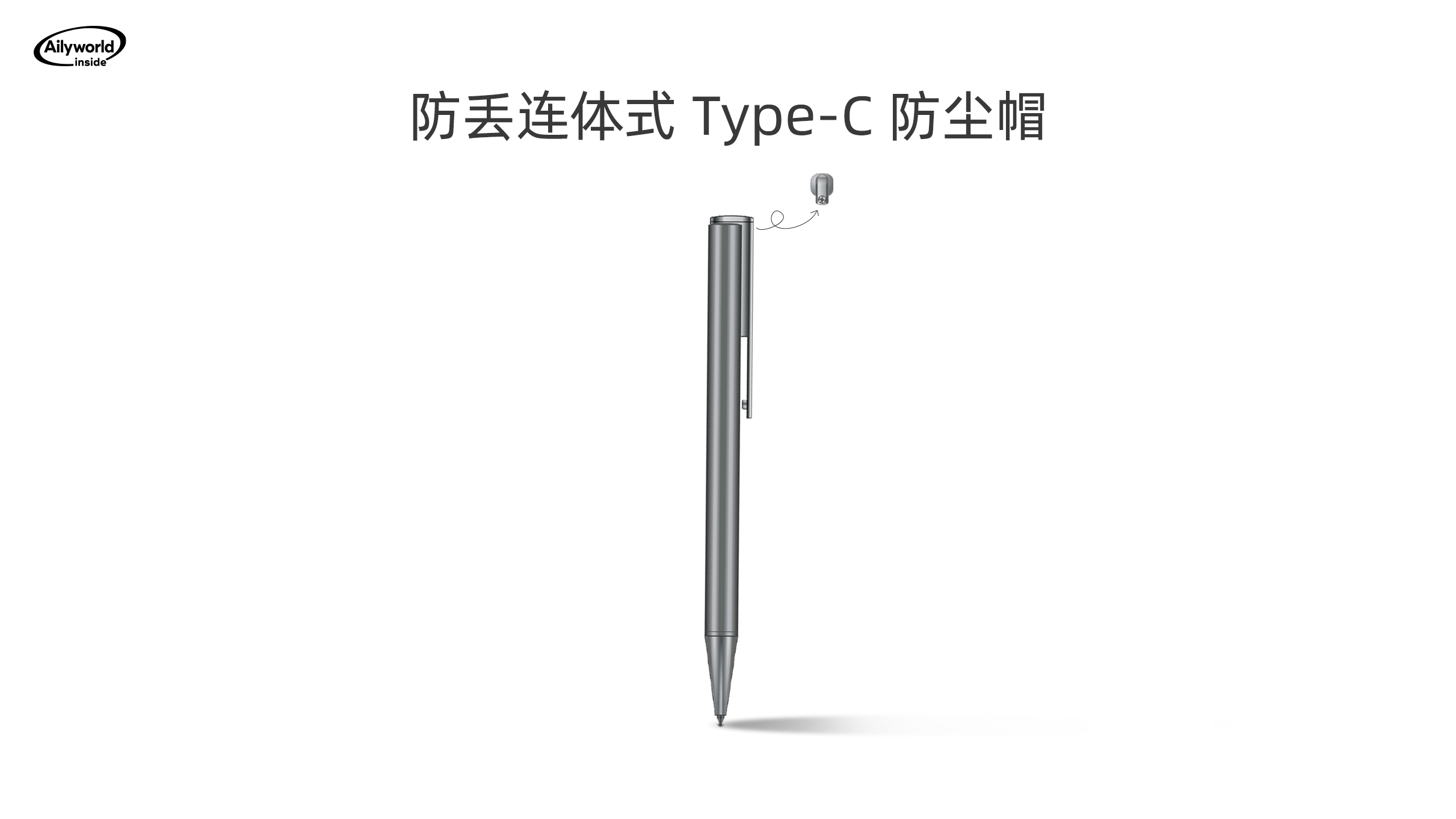

• Charging interface is usedType-C

• Charging time less than 2 hours

Battery life:

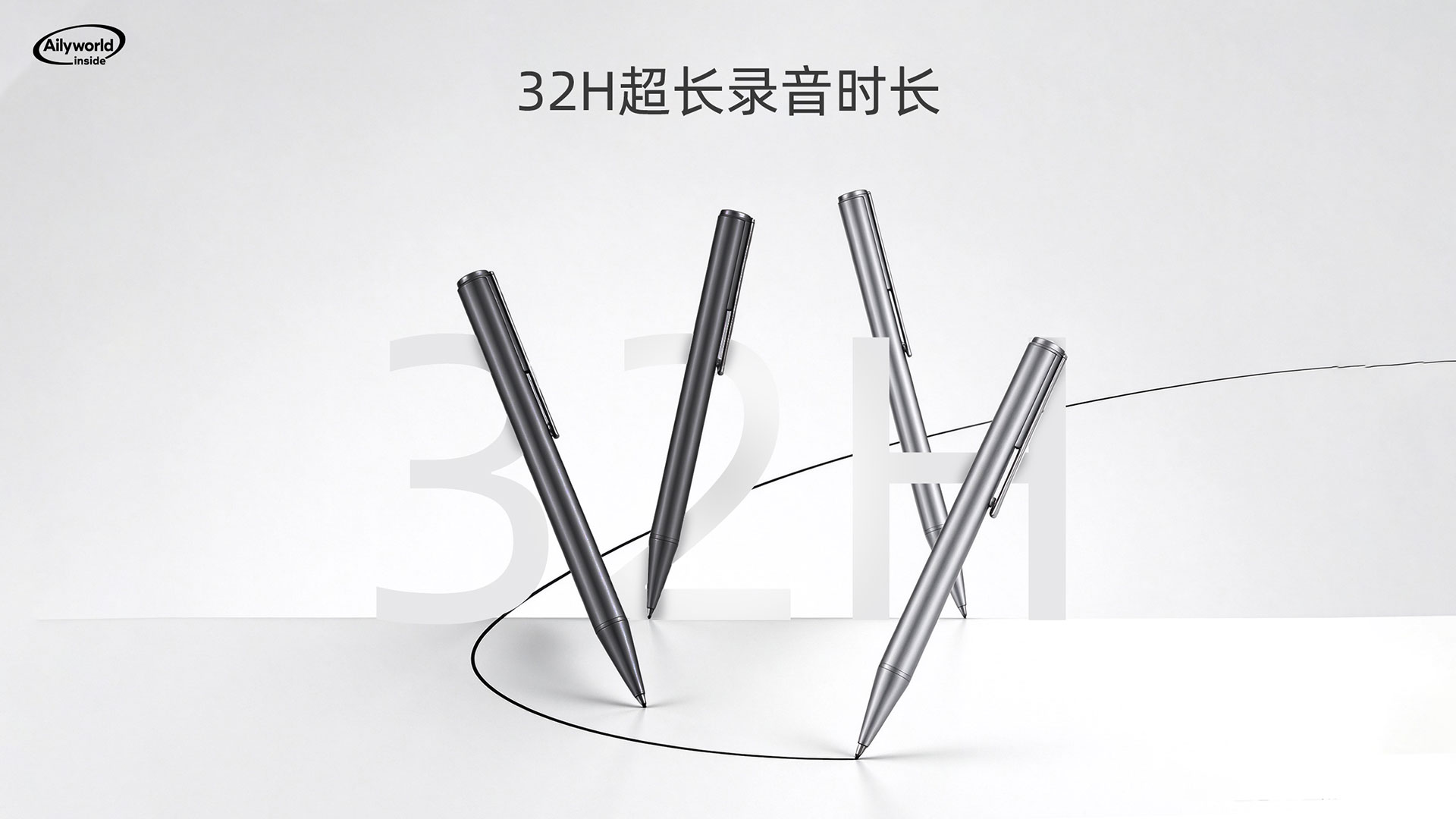

• Endurance in local recording mode ≥ 32h

• Real-time transfer mode endurance ≥ 16h

• Standby duration ≥ 365 days

Working environment:

• Operating temperature range: 0~40 ℃

• Working humidity range: 5% ~ 95%

• Storage temperature range:-20 ℃ ~ 45 ℃

• Storage humidity range: 5% ~ 95%

Authentication:

• It can meet the certification requirements of mainstream countries such as China, Europe, the United States and Japan.


4. software parameters

Local recording:

• The device supports local recording function, and both start recording and end recording are completed by pressing the button for 2 seconds.

• Recording marks can be achieved by clicking the button. Recording includes two modes, namely, live environment recording and automatically recognized mobile phone call recording.


Data storage:

• The device has local storage capability, and the voice file will be stored to SD NAND in real time.


Data Transfer:

• Bluetooth transmission can complete file transmission after the recording ends, or real-time transcriptions can be realized through real-time streaming.

• WiFi fast transmission needs to be switched with App.

• The USB transmission specification is USB2.0 FS.


Device Management:

• Device binding, device unbinding, OTA upgrade, and factory settings restoration are all initiated by the app.

• The device is forced to restart, requiring a long press of the button for 12 seconds.

• The device can store and read device information, including name, model, MAC address, serial number, power, version number, etc.


Audio processing:

• Support microphone gain adjustment, used to adjust the amplification degree of the microphone acquisition signal

• Equipped with VAD function, can automatically retain valid voice

• Built-in AI vocal enhancement algorithm to optimize audio effects.


Hardware driver:

• Including two parts of the button and motor drive capacity.

• Key drive can realize key recognition and display control function.

• The motor drive can realize the control function of the motor.


5. Application Scenarios

Business meetings, customer visits, interviews and editing, classroom learning, training lectures, legal consultation, medical communication, consultation and research, recruitment interviews, engineering inspections, inspiration records, content creation
